Static load: 2.000 kg max
Capacity: 544 kg max 2:1
Torque moment: 125 Nm – S5-25%ED – 180 avv/h.
Traction pulley: 120 – 160 mm
Gearless weight: 80 kg
Voltage: 220 V
Encoder: ENDAT – SINCOS
GEARLESS MACHINES
MGI17

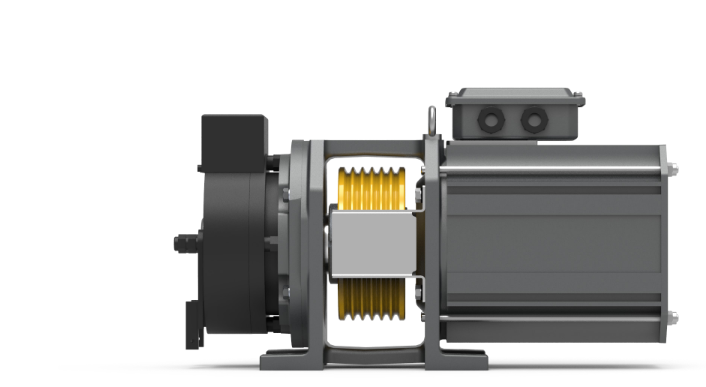

MGI17 Montanari gearless with permanent magnets is suitable for lift installations, lift platforms and Home Lift.
Key features:
- Torque moment: 125 Nm – S5-25%ED – 180 avv/h.
- Central pulley.
- For installations reporting a static load up to 2.000 kg and capacities up to 544 kg max roping 2:1.
- Provided with levers for manual release, power cable and encoder cable. (Special connector on request).
Short circuit torque is always higher than the rated one in order to perform emergency operations in complete safety.
The mechanically redundant brake with double magnetic circuit is certified for excessive speed uphill.
Typical application:
- 2:1 – 340 kg – 160 mm Traction Pulley
